What is muffle furnace？How does it work?

A muffle furnace (also known as an electric furnace or resistance furnace) is a common general - purpose heating device. It is mainly composed of a furnace body, a furnace door, a hearth, a temperature control system, and electric heating elements. It converts electrical energy into heat energy to heat materials at a specified temperature.

Muffle furnaces come in various types. Classified by heating elements, they include electric furnace wire - type, silicon carbide rod - type, and molybdenum disilicide - type muffle furnaces. In terms of rated temperature, they can be divided into different specifications such as those below 1000°C, 1000 - 1200°C, 1300 - 1400°C, 1600 - 1700°C, and 1800°C. Based on controllers, they are categorized into pointer instrument - equipped, ordinary digital display instrument - equipped, PID regulation control instrument - equipped, and program control instrument - equipped muffle furnaces.

It has the characteristics of high temperature uniformity, simple operation and easy maintenance, a wide range of applications, energy conservation and environmental protection (fast heating speed, good heat preservation effect, and low energy consumption). It is widely used in many fields. For example, in the thermal processing industry, it is used for the thermal processing or treatment of small workpieces in fields such as cement and building materials; in the pharmaceutical industry, it is used for drug inspection and pretreatment of medical samples; in the analytical chemistry industry, it is used for sample treatment in fields like water quality, environment, and petroleum; in coal quality analysis, it is used to determine indicators such as moisture and ash content, and it can also be used as a general ashing furnace.

How does a muffle furnace work?

A Muffle furnace allows rapid high-temperature heating, recovery, and cooling in self-contained, energy-efficient cabinets. A muffle furnace separates the object to be heated from all byproducts of combustion from the heat source. In modern electrical furnaces, a radiation or convection energy applies heat to a chamber using a high-temperature heating coil inside insulated material. The insulating material effectively acts as a muffle, preventing heat from escaping

What is muffle furnace used for?

Muffle furnaces now use technology and design to achieve greater control of temperature uniformity and isolate heated materials from combustion contaminants. This makes muffle furnaces ideal for ashing samples, heat-treating applications, and materials research.

Industrial manufacturers or laboratory environments commonly use muffle furnaces for high-temperature applications. These applications include:

l Melting glass

l Creating enamel coatings

l Technical ceramics

l Soldering and brazing

Key Features of a Muffle Furnace:

l High Temperature Capability: The temperature of a muffle furnace typically ranges from 1200°C to 1700°C, depending on the model

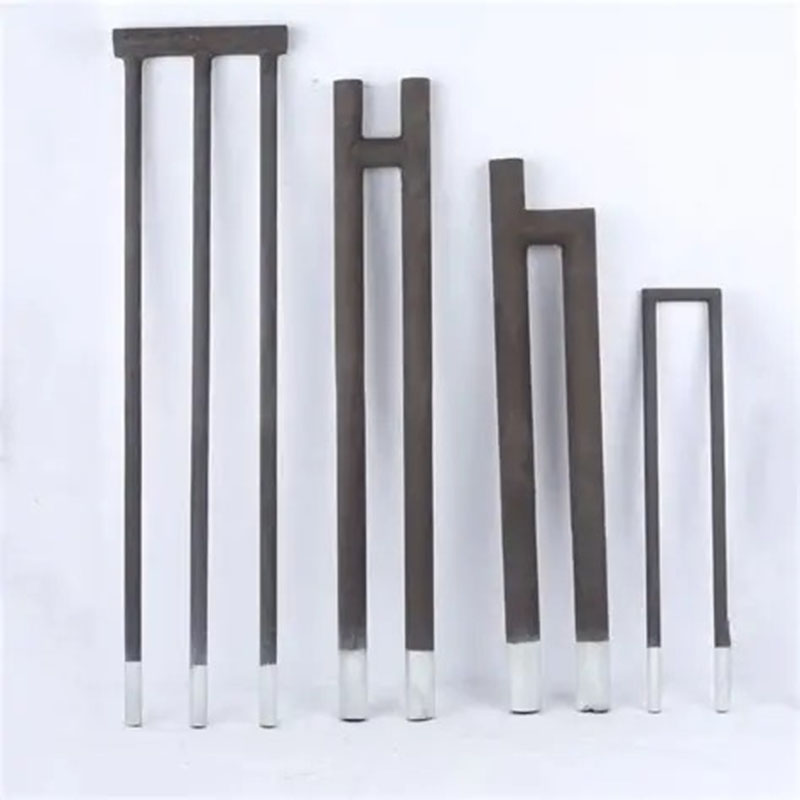

l Heating Coil Technology: Advanced heating elements, such as silicon carbide, molybdenum disilicide (MoSi2), or Kanthal wire, ensure efficient and uniform heating

l Compact & Insulated Design: The chamber is well insulated to retain heat and improve energy efficiency

l Digital Temperature Control: Modern muffle furnaces come with programmable temperature settings for precision
