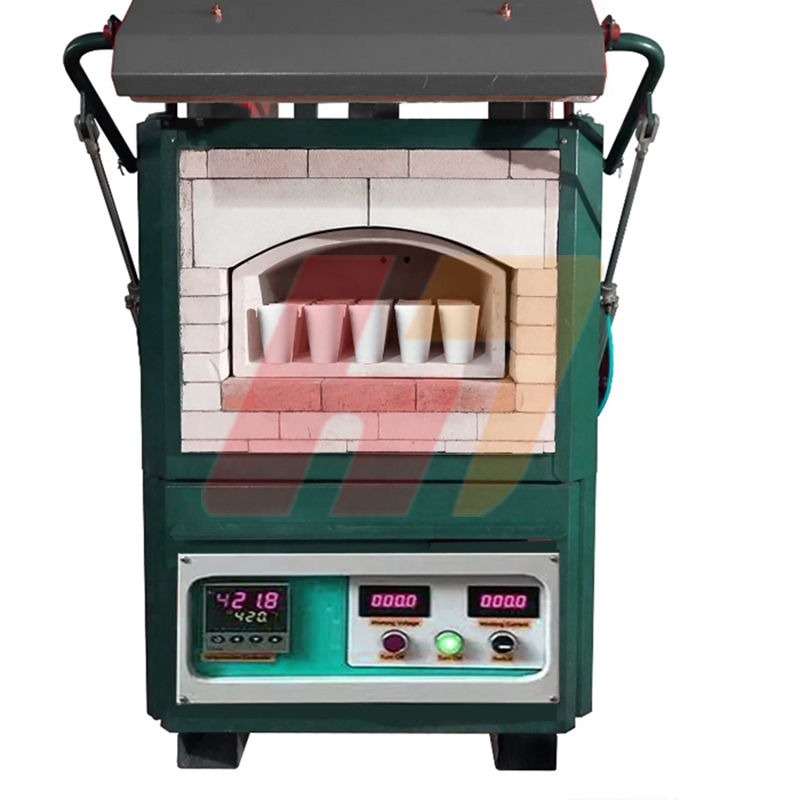

The fire assay sample melting furnace is widely used in the experiments and production of such fields as electronics, ceramics, metallurgy, glass, and new material development. It is mainly applied to heating and melting samples in fire assay.
Pledge: genuine guarantee,speed refund,gift insurance,seven days no reason to return
The fire assay sample melting furnace is widely used in the experiments and production of such fields as electronics, ceramics, metallurgy, glass, and new material development. It is mainly applied to heating and melting samples in fire assay.
Advantages of the fire assay sample melting furnace:
1. The independent furnace chamber is convenient for maintenance and replacement, and is suitable for experiments and production in multiple fields;
2. It has a high temperature control precision, and the temperature uniformity and stability inside the furnace chamber are high;
3. The door is opened through pneumatic control, which is convenient to operate and keeps the hot furnace door away from the operator;
4. It is equipped with safety protection measures such as automatic over-temperature alarm output to prevent accidents;
5. High-insulation refractory bricks are used, and the insulation effect is excellent.
Specification Models
Furnace chamber size (mm) | Overall dimension (mm) | Quantity and specification of crucibles (mm) | Temperature(℃) | Heating fuel |
Outer: 500×430×360 Inner: 465×380×310 | 910*950*1750 | 12*50/65g 16*30/40/55g | 1200 | 18KW 3-Phase |
Outer：660*610*360 Inner：600*570*303 | 1300*1100*1850 | 25*50/65g 42*30/40/55g | 1350 | 40KW 3-Phase |
Main technical parameters:
Product Name | Fire assay sample melting furnace |
Furnace door design | Open up and down |
Temperature measuring element | Type K thermocouple |
Heating position | On both sides of the furnace chamber |
Temperature control accuracy | ±1℃ |
Furnace temperature uniformity | ±5℃ |
Heating rate | The heating rate can be freely adjusted, and the adjustment range is: the fastest is 20℃ per minute. It is recommended to set the heating rate at 5-10℃ per minute. |
Heating element | Silicon carbide heating elements are adopted. The maximum surface temperature of the elements is 1600°C. They are used at high temperatures in an oxidizing atmosphere and possess unique high-temperature oxidation resistance. |
Furnace structure | The electric furnace body adopts an advanced furnace body structure. The effective wind guiding partition plate enables the overall air circulation of the furnace shell. Finally, the air cools the conductive plates of the heating elements and is then discharged out of the furnace body, avoiding the high-temperature oxidation of the conductive plates of the heating elements and ensuring a good working environment. |
The opening method of the furnace body | Pneumatic |
Warranty scope and period | The electric furnace comes with a one-year free warranty, excluding vulnerable parts such as heating elements and thermocouples. |
Precautions:
1. In order not to affect the service life of the electric furnace, we recommend that the maximum heating rate and cooling rate be 10°C/min. (If the heating rate is too fast, the service life of the heating element will be shortened.)
2. This electric furnace has a vacuum-sealed structure, so flammable and explosive gases must not be introduced.
3. After this electric furnace has been used for a period of time, tiny cracks may appear in the furnace chamber. This is a normal phenomenon and will not affect its use. At the same time, it can be repaired with an aluminum oxide coating.
4. It is not recommended to introduce corrosive gases. If strong corrosive gases such as sulfur (S), sodium (Na), etc. need to be introduced, please inform us in advance, and we will carry out special treatment on the furnace chamber.
5. Do not let the high-temperature solution leak onto the bottom of the furnace. To avoid this, you can use a backing plate or isolate it with aluminum oxide powder.
6. The instrument should be placed in a well-ventilated and non-humid place.
