Steel Assay Mold
Steel Assay Mold
  • Steel Assay Mold
  • Steel Assay Mold
  • Steel Assay Mold
0 1 2

Assay mold is a key tool in the process of pyroassay. During the fire assay, samples such as ore and flux are first fused in the crucible at high temperature, and then the molten substance is poured into the groove of the assay mold. The shape, number and size of the grooves are designed according to the test requirements. Circular or oval grooves are conducive to uniform cooling and solidification of the sample. Multiple grooves can handle multiple samples at once, improving work efficiency.

Main features of assay mold:

1. High temperature resistance:

 Fire assay must be carried out in a high temperature environment, and the mold must be able to withstand high temperatures.



2. Specific structural design:

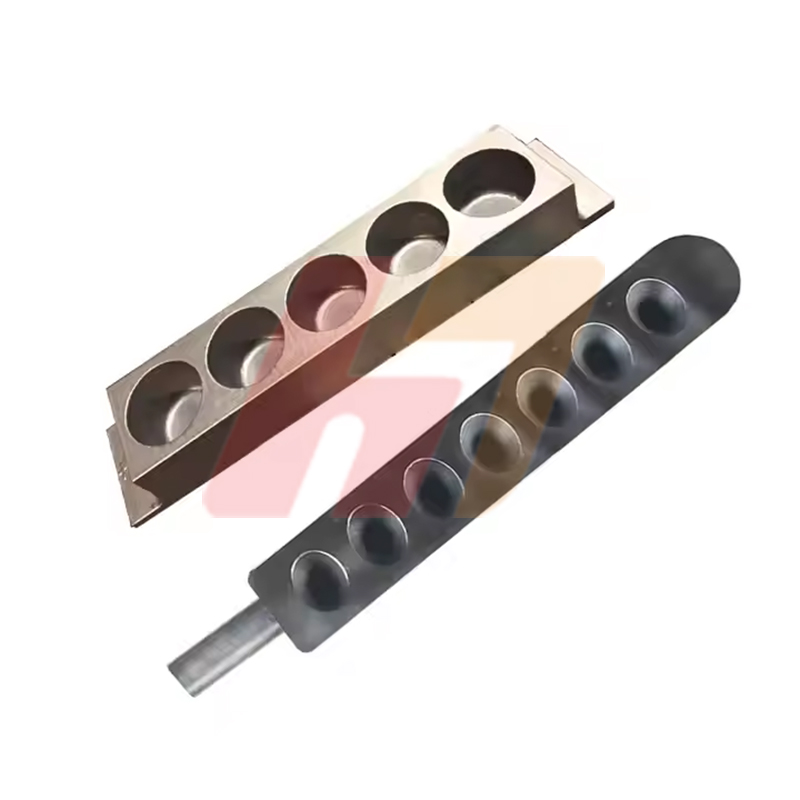

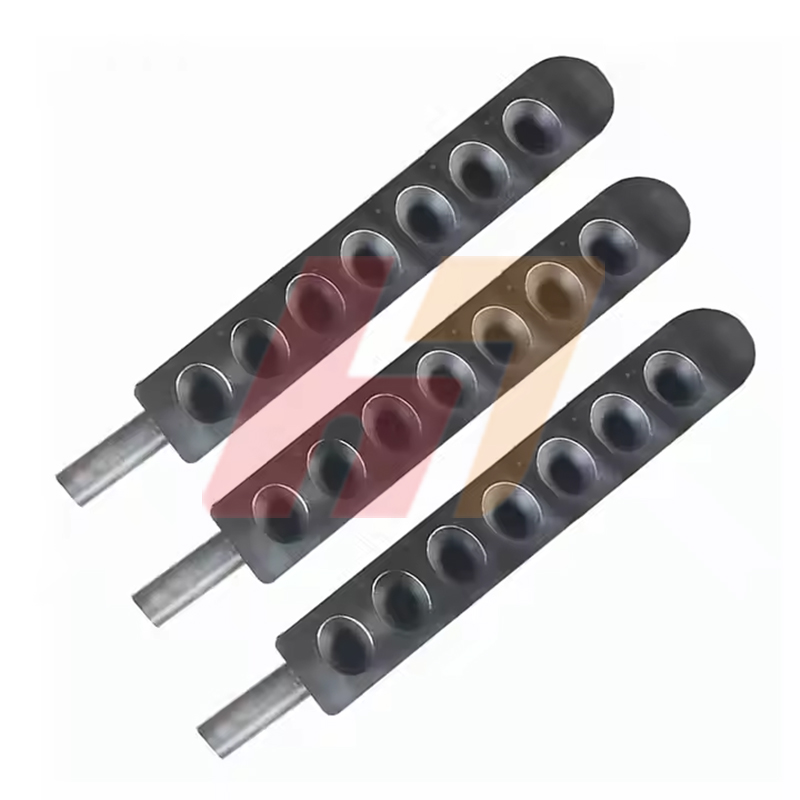

 In order to meet the needs of the fire assay process,It has multiple conical cavities,such as 5 conical cavities,7 conical cavities and so on,the mold structure design is unique.It can be customized according to your requirement.



3. Good thermal conductivity:

It is conducive to rapid cooling and solidification of the sample and improve the assay efficiency. Taking the mold of cast iron material as an example, its good thermal conductivity can make the high-temperature molten sample cooled and formed in a short time, shortening the experiment or production cycle.



4. Corrosion resistance:

 In the process of testing, the mold will be exposed to various chemical substances, such as metal components in the sample, flux and so on.

Main technical data:

Parameters

Specific parameters

Common valve range

Integral length

100-300

Integral width

30-80

Overall height

20-50

Circular groove diameter

20-50

Circular groove depth

10-30

Oval recess long axis

30-60

Oval grooved short axis

20-40

Material parameter

Material type

Metal

Hardness (cast iron, HB)

170-240

Hardness (stainless steel, HV)

150-200

Service performance parameter

High temperature resistance

800-1200

Capacity of a single groove

Tens - hundreds

 Customized products and services are available.
